Separators - Scrubbers - Condensate Blowcase

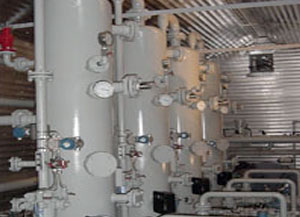

Features of Vertical Separators
- Standard two-phase and three-phase separators, production and test.
- High-surface defoaming separators.
- Free-water knockouts.
- Liquid knockouts.
- Microscrubbers, liquids and solids.
- Blowcases.
- Gas scrubbers.
Oil and Gas Primary Separation
BS&B Custom-engineered separators have exclusive design and operational features which provide maximum efficiency throughout a long service life. BS&B's proven strength and experience with high volume crude oil streams are unsurpassed and includes separation of foamy and /or waxy crude oils using single vessel capacities of over 600,000 barrels per day.

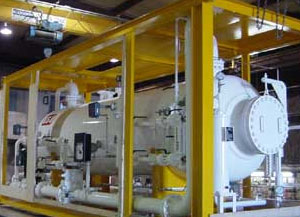

Features of Horizontal Separators
- Standard two-phase and three-phase separators, production and test.
- High-surface defoaming separators.
- Free-water knockouts.
- Liquid knockouts.
- Microscrubbers, liquids and solids.
- Blowcases.
- Gas scrubbers.
Oil and Gas Primary Separation
BS&B Custom-engineered separators have exclusive design and operational features which provide maximum efficiency throughout a long service life. BS&B's proven strength and experience with high volume crude oil streams are unsurpassed and includes separation of foamy and /or waxy crude oils using single vessel capacities of over 600,000 barrels per day.

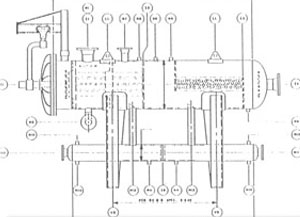

Features of Micro Scrubber
- The Microscrubber is designed to handle situations where liquid removal to the one micron level is required. A primary
application is at compressor stations to protect the compressors.
- The Microscrubber contains two operating sections, a filter section and a mist extractor section. The filter section consists of an inlet baffle and a number of tubular fiber glass filters connected in parallel through a bulkhead support plate. The mist extractor section contains a wire mesh mist extractor. A lower split chamber serves as an accumulator for collecting the free liquid draining from the filters or mist extractor. Differential pressure between the two stages prevents the use of a common dump valve; each section must be drained separately.
Contact Us | Quotation Request Form

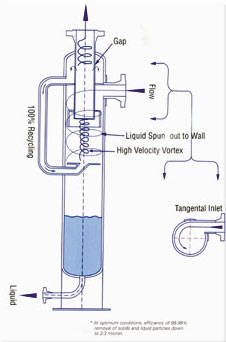

Recycling Separators - Process
- Black, Sivalls & Bryson (Canada) Limited's model VRS and HRS Recycling Separators have three effective stages of
operation. In the first stage, essentially all the free liquid and a good portion of the entrained liquid is spun out of the gas by centrifugal force, created by the tangential entry into the separator. In the second stage, the remaining entrained liquid in the gas is spun out under the influence of increased centrifugal force (high velocity vortex). In the third stage, the last separation process is completed, as the gas exits into the outlet tube and the remaining entrained liquid is recycled through the gap entering the lower pressure upper chamber.
- The liquid chamber is designed to handle the liquid flow as per your design requirements. This chamber may be designed for liquid/liquid separation or to handle very large liquid flows.
- BS&B Canada's engineers will custom size/design to meet separation requirements if your flowrate specifications cannot be accommodated in our wide range of Standard Units.
